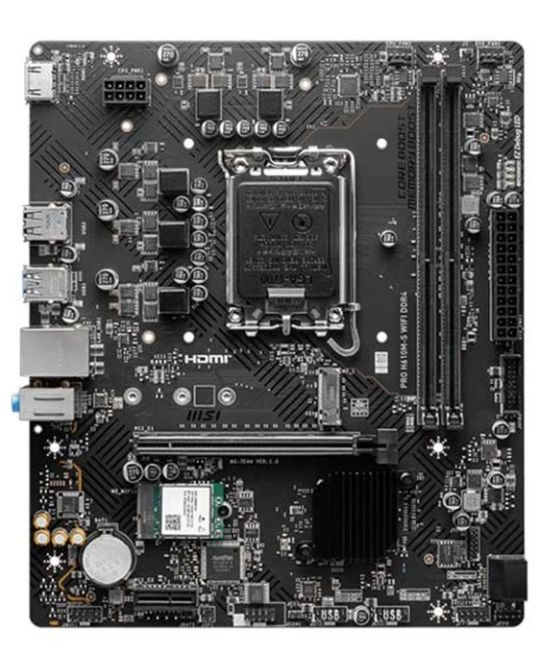

MSI PRO H610M-S DDR4 WiFi mATX Motherboard - Black

Chipset

• Intel H610

CPU

• Supports Intel® Core™ 14th, 13th, 12th Gen, Pentium® Gold, and Celeron®
• Socket LGA 1700

Memory

• 2x DDR4, Max 64GB
• Supports DDR4 up to 3200 MHz
• Dual-Channel mode

Onboard Graphics

• HDMI™ 1.4, 4K @ 30Hz

Slots

• 1x PCI-E x16 (Gen 4.0)
• 1x PCI-E x1 (Gen 3.0)

Audio

• Realtek® ALC897 Codec, 7.1-Channel

Storage

• 1x M.2 (PCIe 3.0 x4)
• 2x SATA 6G

USB Ports

• Rear: 4x USB 2.0, 2x USB 5Gbps
• Front: 4x USB 2.0, 2x USB 5Gbps

LAN

• Realtek® RTL8111H Gigabit LAN

Wireless LAN & Bluetooth

• Wi-Fi 6E (2.4GHz, 5GHz, 6GHz up to 2.4Gbps)
• Bluetooth® 5.3

Internal IO

• 1x ATX_PWR, 1x CPU_PWR
• 1x CPU Fan, 1x System Fan
• 4x USB 2.0, 1x TPM 2.0

LED Feature

• 4x EZ Debug LEDs

Back Panel Ports

• HDMI™, USB 5Gbps Type-A, USB 2.0, LAN, Audio

PCB

• mATX Form Factor
• Dimensions: 200mm x 236.16mm

Operating System

• Windows® 10 64-bit, Windows® 11 64-bit
